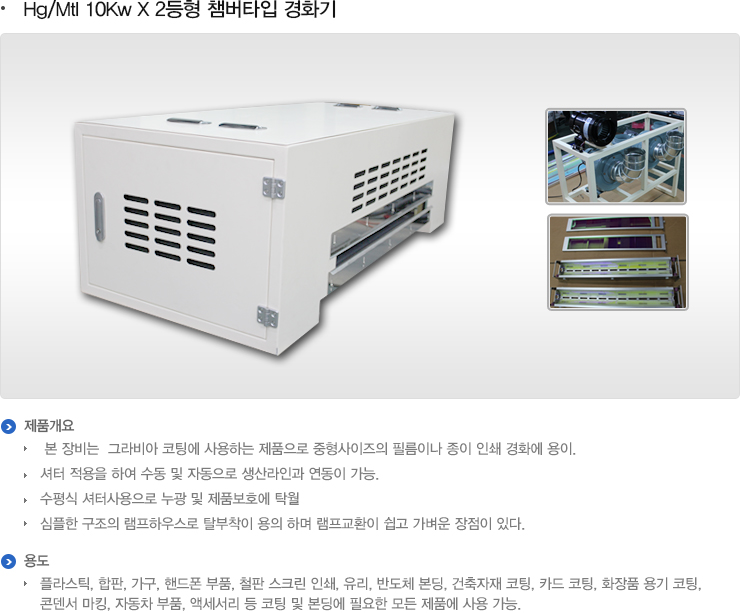

| APPLICATIONS |
각종 그라비아 필름 접착,코팅용 제품 |
| Model No. |
IM-PM02-010M |
| Light Source |
Mercury UV Lamp &Metal Halide UV |
| Power Supply |
AC 3Φ/220,380V / 50,60㎐ / |
| Cooling System |
공냉식 |
| Curing Width |
650mm 극간800mm |
| Reflector |
Cold Mirror + Hot Mirror |
| Dimension( W x D x H ) |
600 * 1350 * 450 |
| Option |
무단 제어시스템,N2 + 기타 |
|
|
 |
 |

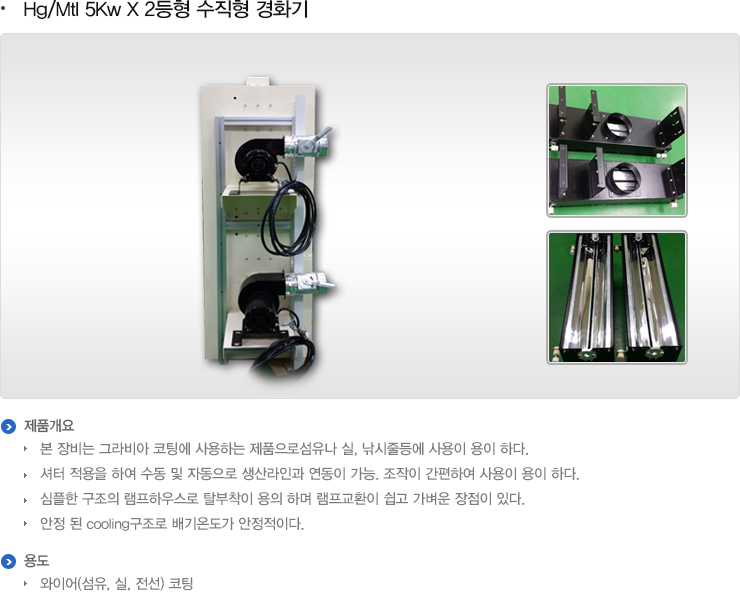

| APPLICATIONS |
와이어 코팅에 적합 |
| Model No. |
IM-VM02-005M |
| Light Source |
Mercury UV Lamp &Metal Halide UV |
| Power Supply |
AC 3Φ/220,380V / 50,60㎐ / |
| Cooling System |
공냉식 |
| Curing Width |
420mm 극간500mm |
| Reflector |
AL반사판 |
| Dimension( W x D x H ) |
450 * 500 * 1400 |
| Option |
Hot/Cold Mirror,무단제어,N2+기타 |
|
|
|
 |

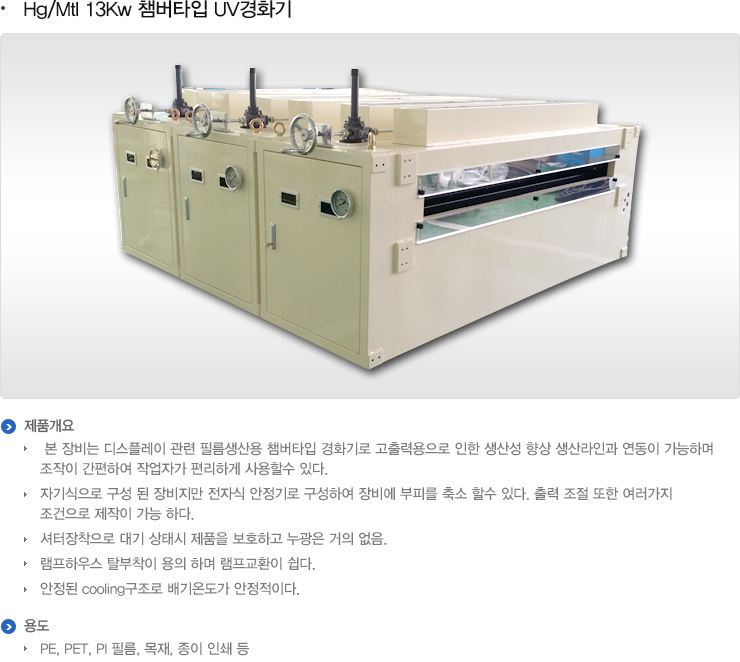

| APPLICATIONS |
필름용 경화에 적합 |
| Model No. |
M-PM06-017M |
| Light Source |
Mercury UV Lamp &Metal Halide UV |
| Power Supply |
AC 3Φ/220,380V / 50,60㎐ / |
| Cooling System |
공냉식 |
| Curing Width |
1500mm 극간1700mm |
| Reflector |
Cold Mirror + Hot Mirror |
| Dimension( W x D x H ) |
196 * 2058 * 295 |
| Option |
무단 제어시스템,N2 + 기타 |
|
|
|
|
|
